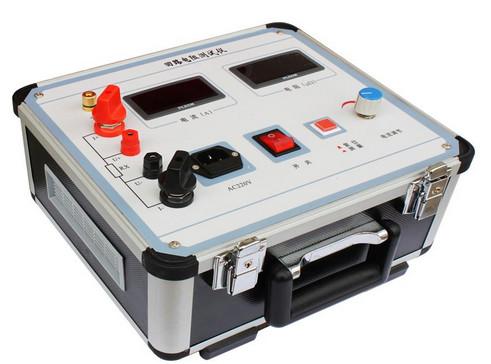

    Switchgear Testing Device Switchgear Power

    Switchgear Testing Device Switchgear Power On and Off Test Bench RSGK-ⅠHV/LV

    Product Description

    The RSGK-Ⅰ HV/LV switchgear power on and off test bench is applicable to the various factory power-on tests of HV/LV switchgear. It is capable to provide various AC and DC power supply for switchgear detection and increase the working efficiency.


    Feature/Function

    Output voltage and current:

    1. 1 set of 3-phase AC100V output (fixed value)

    2. 1 set of 3-phase AC 0 – 10A output (100V, adjustable)

    3. 1 set of 1-phase 24V, 36V, 110V and 220V DC fixed output

    4. 1 set of current less than 10A when AC operating voltage output AC 0–400V and 220V

    5. 1 set of DC operating voltage output DC 0-260V

    6. 1 set of DC closing power output DC 0-300V (300A, short-time operation)

    7. 2 sets of 1-phase AC 220V output (fixed value, socket type)

    8. 1 set of 3-phase AC 380 output (fixed value, binding post)

    9. Desk lamp lighting
