    RS2305 Insulation Resistance Test Equipment Digital Megger High Voltage Test

    Ask Lasest Price
    Brand Name : RISING
    Model Number : RS2305
    Certification : ISO CE
    Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 SET PER Month
    • Product Details
    • Company Profile

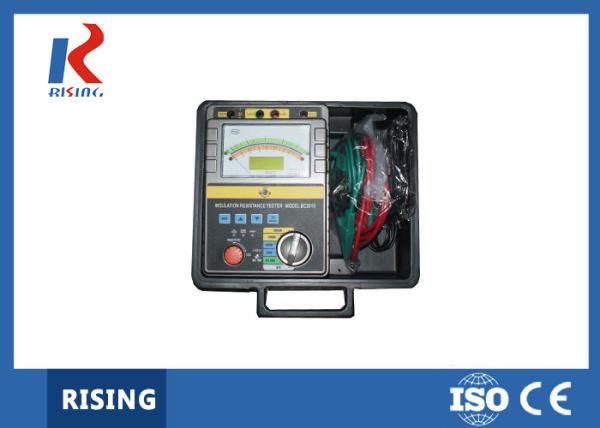

    RS2305 Insulation Resistance Test Equipment Digital Megger High Voltage Test


    RS2305 Insulation Resistance Test Equipment Digital Megger High Voltage Test


    Product Description

    Resistance measurement range of our RS2305 (250V/500V/2500V/5000V) can reach 0-400GΩ Two methods can be used to display insulation resistance synchronously. Simulated pointer makes it easy to observe insulation resistance change range, and digital display can obtain accurate measurement results.

    Feature/Function

    Model

    RS2305

    Output voltage

    250V DC500V DC1000V DC2500V DC5000V DC

    Accuracy

    Temperature

    23℃±5℃

    Insulation resistance

    250K-5G500K-10G1M-20G2.5M-50G5M-100G
    ±5%±5%±5%±5%±5%

    Other ranges: ±10%

    Output voltage

    2M-10G4M-20G8M-40G20M-100GΩ40M-200G
    ±5%±5%0-+10%0-+10%0-+10%

    High voltage short circuit current

    ≥3.5mA

    Working power supply

    8 AA high-capacity rechargeable batteries, externally equipped with charging adapter (or 8 AA alkaline batteries)

    Working temperature and humidity

    -10℃-40℃; maximum relative humidity 85%

    Storage temperature and humidity

    -20℃-60℃; maximum relative humidity 90%

    Insulation performance

    Maximum resistance is 2000MΩ when voltage between circuit and enclosure is 1000V DC.

    Withstand voltage properties

    Duration lasts for 1min when voltage between circuit and enclosure is 2500V AC

    Size

    230mm×190mm×90mm (L×W×H)

    Weight

    3kg

    Accessory

    One set of testing wires, manual, qualification certificate, charging adapter and power wire
