    Motor Testing Equipment Frequency Conversion

    Ask Lasest Price
    Brand Name : RISING
    Model Number : RSBYL-V
    Certification : ISO CE
    Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 SET PER Month
    • Product Details
    • Company Profile

    Motor Testing Equipment Frequency Conversion

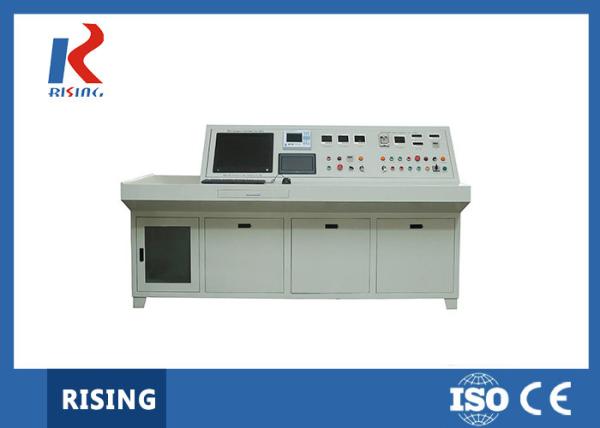

    RSBYL-V Motor Testing Equipment Frequency Conversion

    Motor Microcomputer-type Integrated Test System

    Product Description

    RSBYL-V frequency conversion motor microcomputer-type integrated test system adopts virtual instrument technology to combine the powerful calculation processing capacity of computer with the measurement and control capacity of the instrument hardware and realizes the control over system and the operation, analysis, processing, display, printing and storage through software, making system functions far surpass the simple combination of common instrument and equipment and displaying the superiority that the traditional instrument cannot match especially in aspects such as results saving, waveform storage, synchronous measurement, extendibility of system and single instrument realizing multiple functions.

    The test bench consists of industrial computer, test power supply system, test control system, sensor and signal adjusting module, data acquisition hardware and software, figure computing and processing software, graph display and operation software, test report generation, waveform and measurement results storage and printing software, etc. The test bench has the characteristics of multiple channels, multiple functions, precision measurement, etc.

    Feature/Function

    S/N

    Factory acceptance test items

    Type test standard items

    Optional items

    1

    Measurement of environment temperature

    All factory acceptance test items

    Instant voltage rise test

    2

    Insulation resistance measurement

    Locked rotor characteristic test

    Rotor opening test (winding rotor motor)

    3

    DC resistance measurement

    No-load characteristic test

    Moment of inertia measurement

    4

    Power frequency withstand voltage test

    Thermal test (5/50Hz)

    Accidental overcurrent test

    5

    Interturn withstand voltage test

    Load test

    Enclosure protection test

    6

    Locked rotor test

    Maximum torque measurement test

    Measurement of shaft voltage

    7

    No-load test

    Minimum torque measurement test

    /
    8

    Frequency modulation test

    Short-time over-torque test

    9

    No-load noise measurement test

    Over-speed test

    /
    10

    No-load vibration measurement test

    Other test items can be customized according to customer demand
