    Lightning Arrester Test Equipment RSZGFZH Direct Current Below 1500m

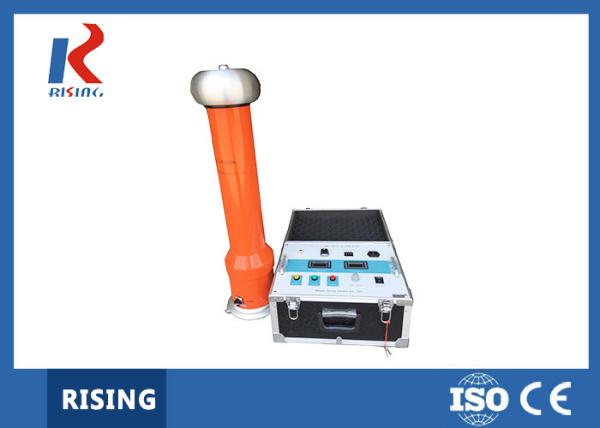

    RSZGFZH Lightning Arrester Test Equipment

    Direct-current High-voltage Generator

    Product Description

    1. Stable and reliable voltage output, noise free;
    2. Stable over-voltage, over-current, zero position switching and no-grounding protection, 0.75 times latch function, can set the value of protection voltage;

    3. Current and voltage meters all are digital display, Voltmeter on control box directly displays the voltage value added at the tested device, convenient to supervise the output status;

    4. Equipped with time relay, can time voice alarm when testing, 0.75 times voltage conversion, convenient to test Zinc Oxide arrester.
    5. Multi-voltage cylinder can be divided into sections, convenient for field test.


    Feature/Function

    1. Power supply: AC220V±10%, 50Hz or 60Hz;

    2. Specification and models:

    40KV/4mA

    60KV / 2mA, 60KV / 5mA,

    120KV / 2mA, 120KV / 3mA, 120KV / 5mA

    200KV / 2mA, 200KV / 3mA, 200KV / 5mA

    300KV / 2mA

    400KV / 5mA;

    3. Accuracy of indicated voltage value: < 1%;

    4. Accuracy of indicated current value: < 1%;

    5. Ripple factor: ≤0.5%;

    6. Indication accuracy of 0.75 times output voltage: < 1;

    7. Working environment: -10-40℃, ≤85%RH under 25℃, without moisture, attitude < 1500m;

    8. Working mode: intermittent use, continuous using time not longer than 30 minutes.
