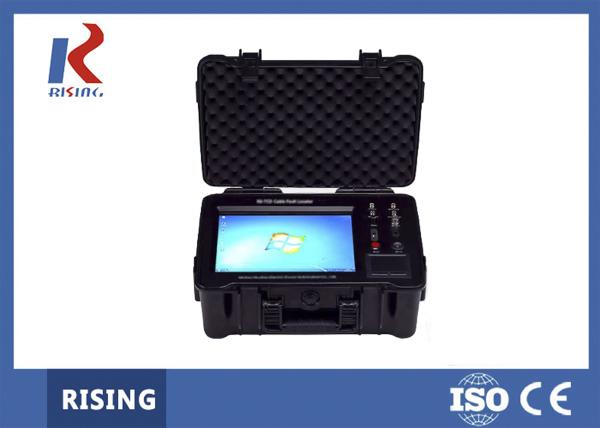

RSTCD Cable Test Equipment Portable Underground Cable Fault Locator Equipment

Product Introduction

The quality and performance of underground cable fault locator have reached the international level, especially the whole set of equipment has surpassed the similar level in portability. The core technology of the multi-pulse method has changed the traditional testing method, which has fundamentally solved the problem of highresistance fault waveform reading that was difficult to solve previously. After multipulse generator, any complex high resistance waveform can be converted into a very familiar and easy to identify low-voltage pulse short-circuit fault waveform. It solves the problem that the user cannot recognize the complicated high resistance fault waveform for a long time, and improves the level of the key rough measurement.

Products Features

1. Using industrial control embedded computer platform system, industrial use environment, to achieve strong stability. Lithium power supply, convenient field test.
2. It adopts 12.1-inch touch system with large screen and integrated software for the whole computer XP operating platform, leaving the era of cable instrument and single-chip microcomputer.
3. The new USB communication interface is adopted to stabilize the acquisition signal. A laptop can be equipped with dual control and dual display. The host machine can automatically select five sampling frequencies, the lowest 6.25MHz and the highest 100MHz, which can meet the testing requirements of cables of different lengths and reduce the error of rough test.
4. The software can realize automatic fault search, automatic distance display and automatic alarm function of false card. Double cursor movement can be accurate up to 0.15m. The waveforms can be arbitrarily compressed, extended and overlapped. Ten low-voltage pulse waveforms can be displayed randomly on the same screen for you to choose the superposition position to improve the test accuracy and reduce the error.
5. Support the newly opened 3G communication terminal or wireless network card, dedicated 3G software can achieve expert remote on-site real-time test technical services, experts remote control of the user host, to provide the user on-site test timely, accurate waveform analysis and communication guidance.
6. The key part of precise fixed-point instrument, which directly shows the distance from the tester to the fault point, is another innovation of the same fixed-point technology in China, which provides a strong guarantee for fast and accurate cable fault detection and reduction of power failure loss.
7. The generator with multiple pulse method has one discharge and ten low-voltage pulses. The short-circuit waveform is directly superimposed and easy to analyze. The multi-pulse generator is small in size and weighs only 5KG, which makes the whole equipment portable.
8. Three kinds of high voltage discharge are available for users to choose from. The high frequency and high voltage power supply is 8.9kg instead of 65kg test transformer and operation box.

Technical Parameters
